| Model | SD680 |
| Power | Yanmar Water Cooling Diesel 18 hp/ 1 Cylinder |
| Power Source | Electrical start |
| Wheel System | Hydraulic |
| Clutch | Single dry plate |
| Maximum Gradient | 21% |
| Transmission and driving | 3 Forward +1 reverse and 4*2 driving |
| Drum capacity | 680 Liter |
| Mixing capacity | 450 Liter |
| Capacity Per Hour | 9m3 |
| Dimension | 2800*1600*2100 mm |
| Weight | 1500 kg |
| 40’ HQ container can be loaded with | 4 complete units |
| Delivery time | 3 weeks after confirmation of the order |
| Maintenance | |
| The mixer should be cleaned after work every day, kept lubricated at all points where grease caps have been provided every week.The Engine oil is suggested to be changed every 70 operating hours. | |
Reliable chassis of 1.5ton site dumper
Simple driving system fixed for the mixing drum, low and easy maintenance required.
Simple structure provide a low cost and all site accessed mixer

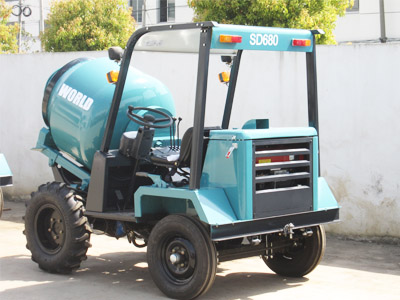

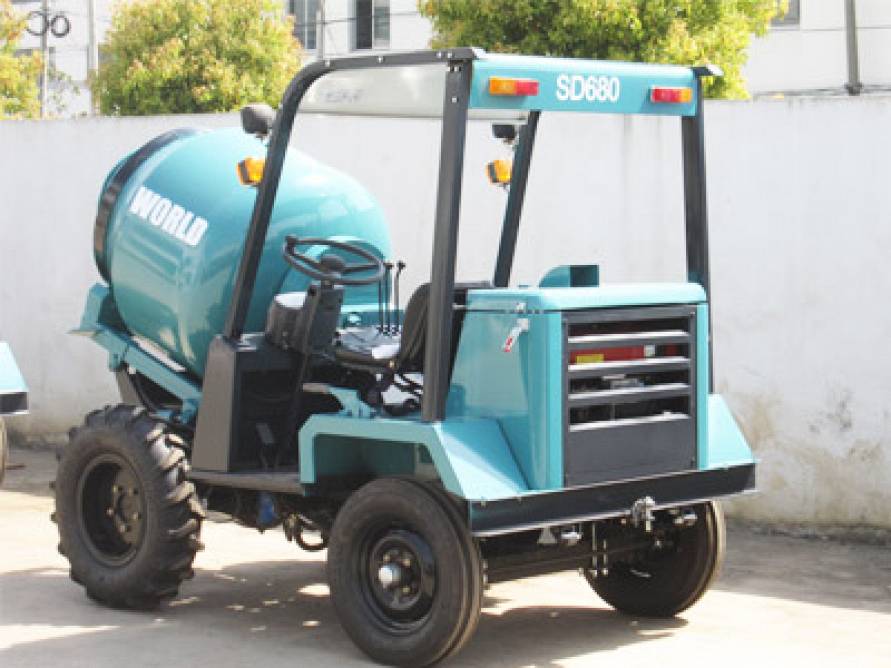

SD680 Self Loading Mobile Concrete Mixer
