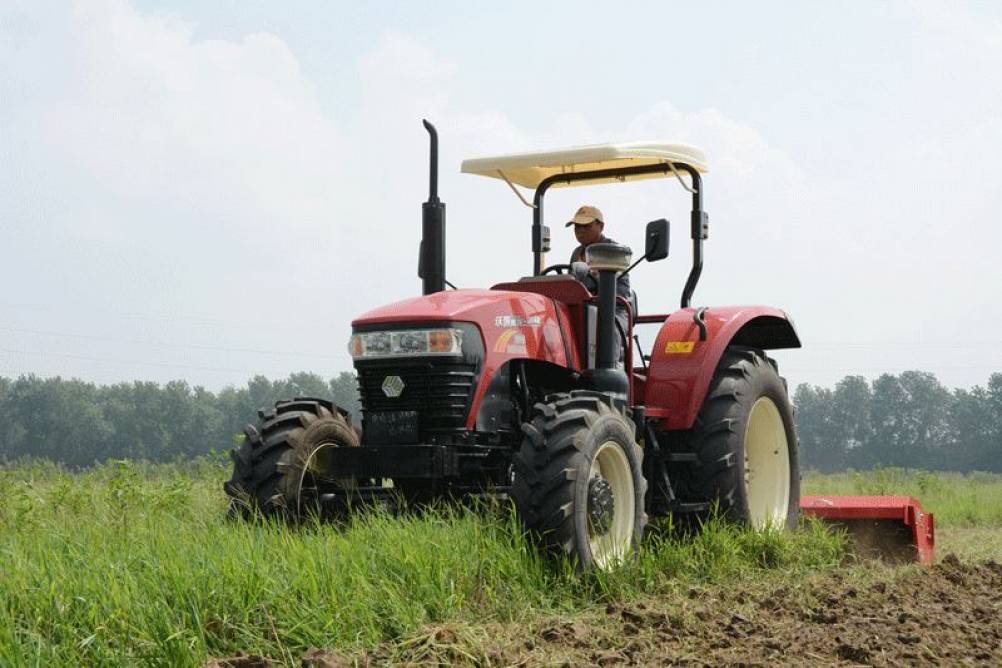

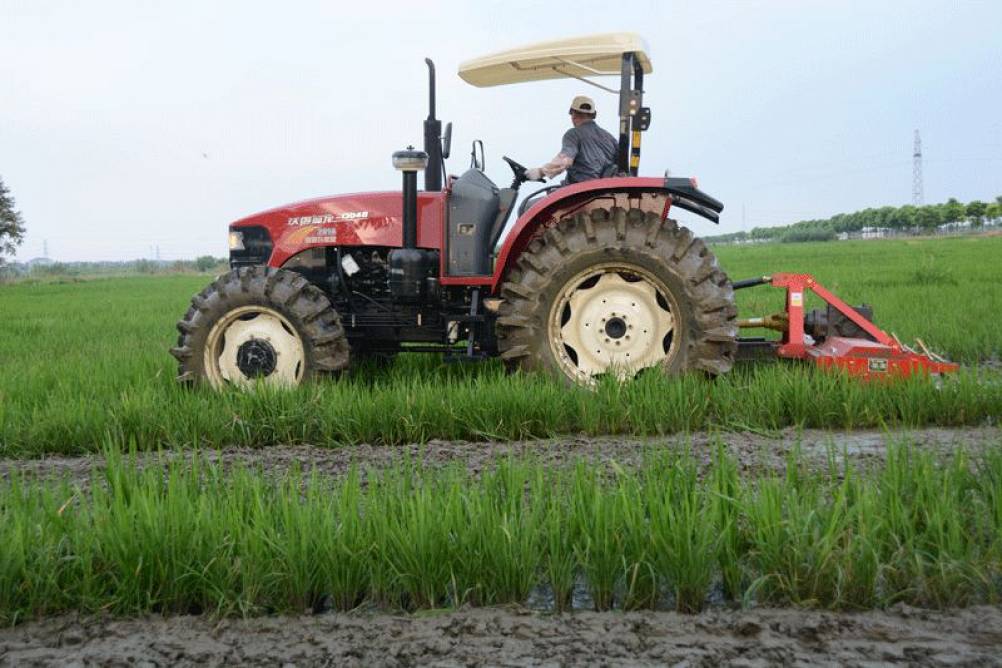

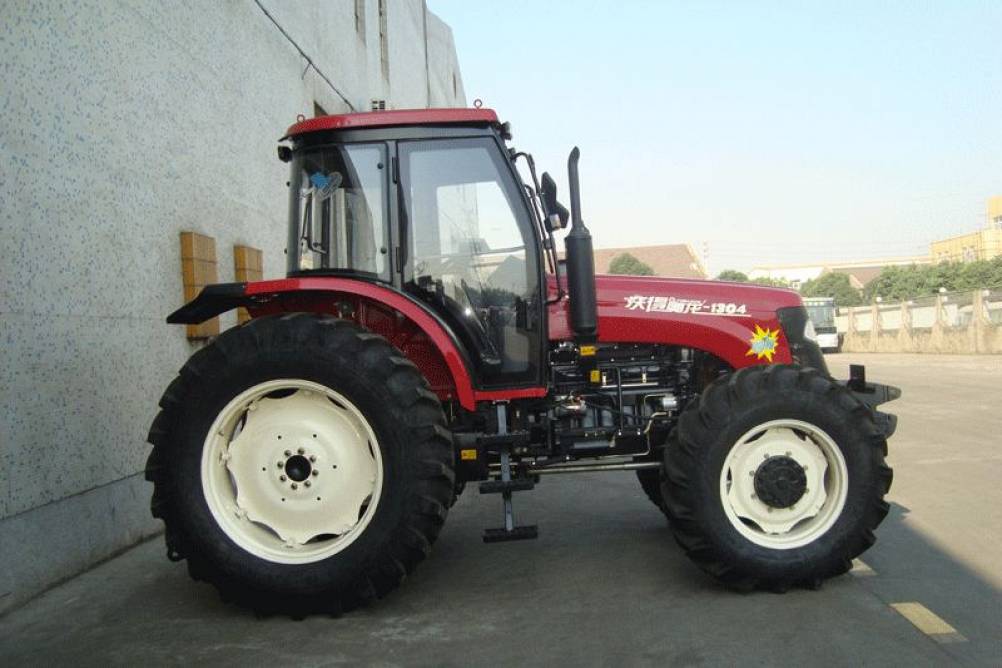

| Model | WD1304 |
| Basic informatin | |
| Type | four-wheel drive |
| Dimension(mm) | 4450*2350*2965(reach to Safety frame) |
| Min Ground Clearance(mm) | 490 |
| Weight (kg) | 4580 |
| Wheel Base Front/Rear(mm) | 1760/1830(normal) |
| PTO Speed(rpm) | 540/760 |
| Output Shaft Power(kw) | 72.5 |
| Clutch | Double |
| Canopy/Cabin | Canopy/Cabin |
| Tires Standard(Front/Rear)(mm) | 14.9-26/18.4-38 |
| Maximum Hauling Force(kn) | 24.2 |
| No. of shift | 24/8 |
| Engine | |
| Engine Type | Inline,Water-cooling,4 Strokes |
| Engine Power (kw) | 99.2 |
| Rotation Rate (r/min) | 2300 |
| Fuel Tank Capacity(L) | 170 |
| Other Features | |
| Front Ballast | YES |
| Rear Ballast | YES |
| Maximum Front/Rear Ballast(kg) | 310/480 |
â— Use Weichai or Yuchai engine, matching Bosch common rail system for better performance.
â— Adopt transmission 24+8 for meeting different tractor implements.
â— Good sealing perforamnce of axles ensure working in water or deep mud field.
â— Use 14 inch large clutch, friction plate uses imported material.
â— More comfortable with a luxurious suspension seat.
â— Fully enclosed luxury cab with good sealing performance, dust and noise prevention, and more comfortable.
â— High quality bearings are used for long work prolonging work life.
