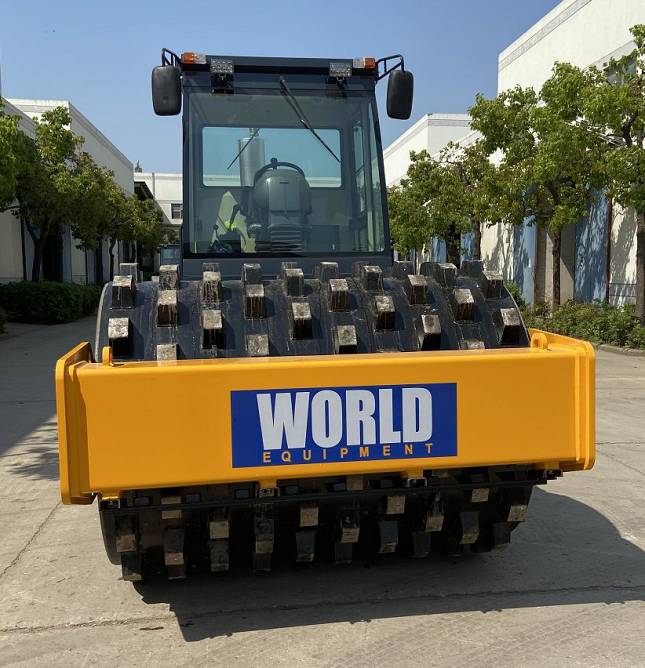

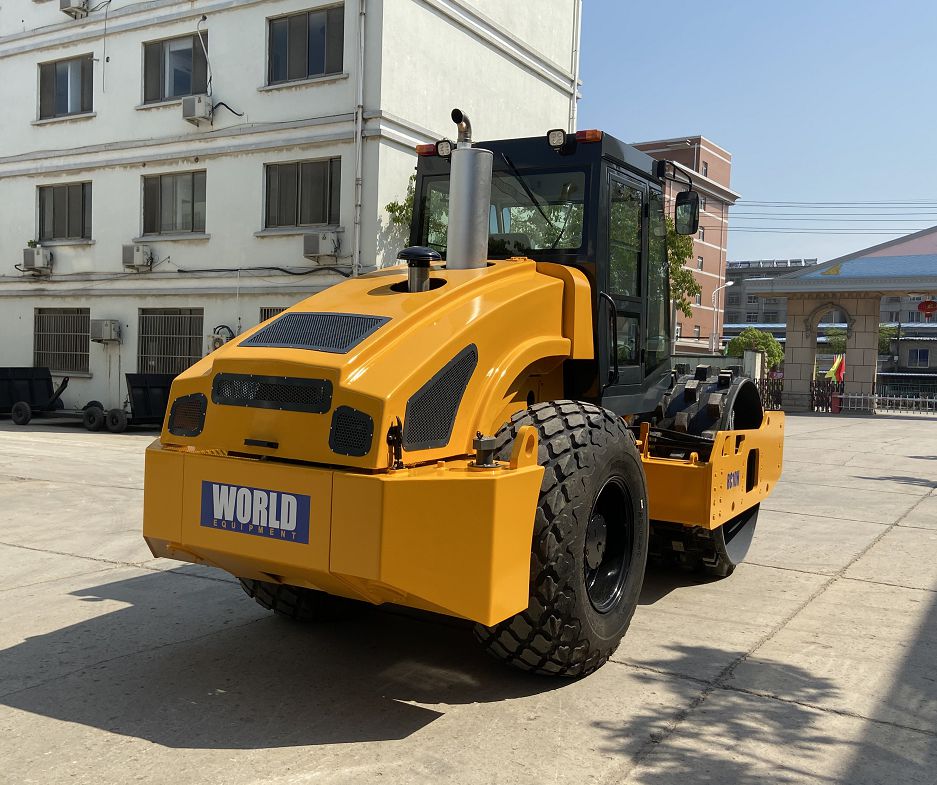

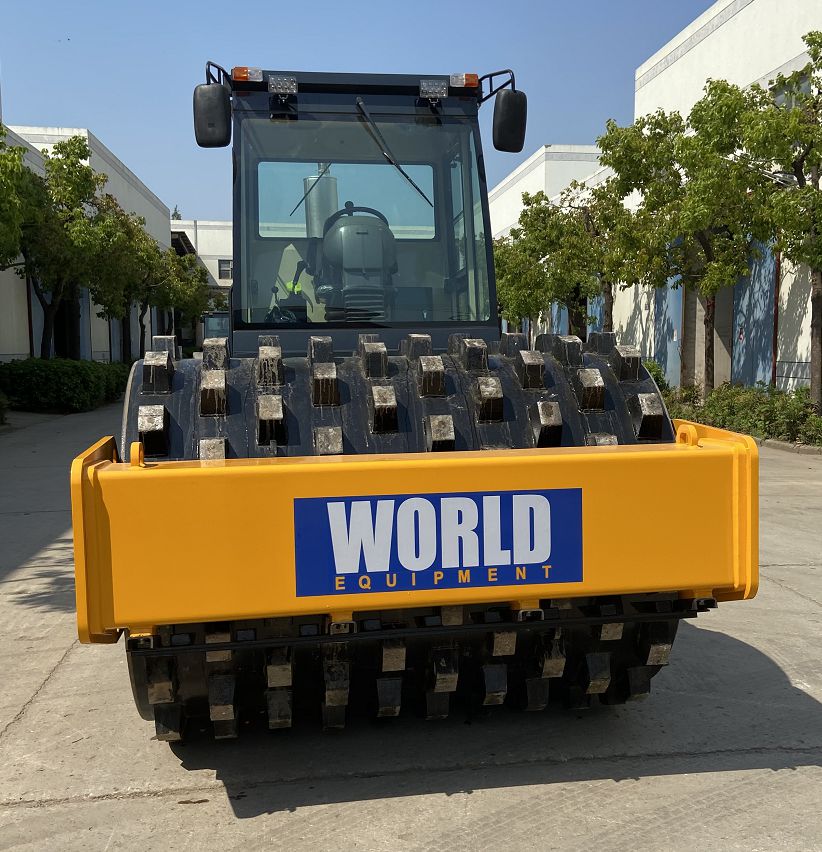

Road Roller - RC12H/RC14H

Distributor Heavy Machinery Road Roller - RC12H/RC14H in Indonesia

Parameters Road Roller - RC12H/RC14H

Main Technical Parameters:


RC14HRC12H
Operating mass Kg1400012000
Static linear load N/cm400340
Vibration amplitude mm(1.8/0.9)1.8
Vibration frequency Hz(29/35)29
Centrifugal forcekN(290/180)(260/1600)
Travel speed km/h1212
Grade ability%3535
Turning speed mm70007000
Overall dimension mm5820x2278x30505820x2278x3050
Vibration round width mm21002100
Wheelbasemm31603160
Ground clearance mm472472
Diesel powerkW110110
Diesel model
Cummins6BT5.9Cummins4BT3.9
  Packing term: In nude
Shipped by/ inI unit RC14H=1 pc 40HQ container;3 units RC14H=2 pcs 40HQ container


Features Road Roller - RC12H/RC14H

Main Features:
      â–²Power System: CUMMINS B-series extra-pressure diesel engine, huge power man coeffciency, complicable for the operating condition above 4000 meters altitude.
      â–²Total hydraulic pressure, total drive, frequency and radiation conversion, articulated direction change, two stepless speed changes, advanced technology; Blocking the oil supply to brake the vehicle, safe and reliable.
      â–²Streamline outline, circular windshield glass and curvy hood form a unique style.
      â–²Hydraulic pump and vibrating motors are of the 90 series made by the American manufacturer SAUER.
      â–²Equipped with padfoot or removal padfoot as option.
