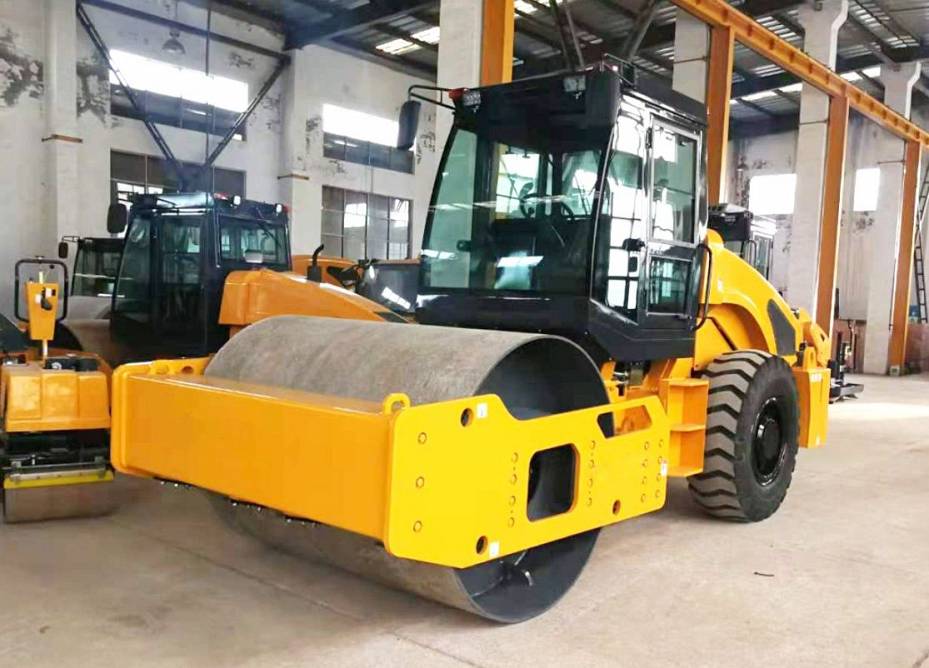

| Model | RC214 | |
| Operating weight | 14000 | kg |
| Diameter of vibrating drum | φ1500 | mm |
| Rolling width | 2130 | mm |
| Activating force | 295/145 | KN |
| Vibration frequency | 30 | Hz |
| Theoretical amplitude of vibration | 1.8/0.9 | mm |
| Moving speed Range I II III | 2.0/5.0/10.5 | km/h |
| backward I II | 2.0/5.0 | |
| Gradeability | 30% | |
| Diesel engine model | WP4G110E221 | |
| Rated rotation speed | 2000 | r/min |
| Rated power | 82 | kw |
| Overall dimensions L W H | 6140×2280× 3080 | mm |
| NO. | Name | Model | Unit | Manufacturer |
| 1 | engine | WP4G110G221 | 1 | WEICHAI |
| 2 | gearbox | CAP5-50 | 1 | YIQI |
| 3 | Drive axle | CY1621 | 1 | Xuzhou |
| 4 | tire | 20.5-25 | 2 | Chaoyang |
| 5 | pump | P5100 | 1 | PERMCO |
| 6 | motor | M5100A | 1 | PREMCO |
| 7 | steering | BZZ1-E500A | 1 | Zhengzhou |
Main Features
1) Mechanical drive, three-speed gear shift. Hydraulic vibration, start-vibration by electric control, hydraulic steering with light operation.
2) Articulated frame, flexible steering, nice appearance and streamlined design. The back casing can be turned up in a big angle for easily maintenance.
3) This roller has super compaction performance. Double amplitude applies for different stage compaction works. This system also has the function of delayed transition and stable transition of amplitude.
4) Adopt the special gear-box with synchronizer, easy to operate and comfortable.
5) Streamlined shape design with the whole removable cover, easy to maintenance.
