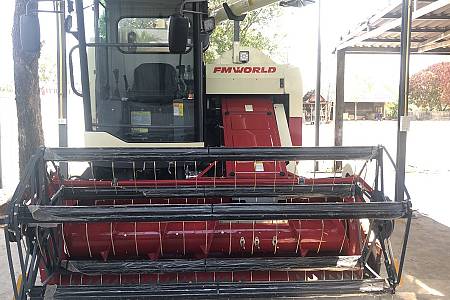

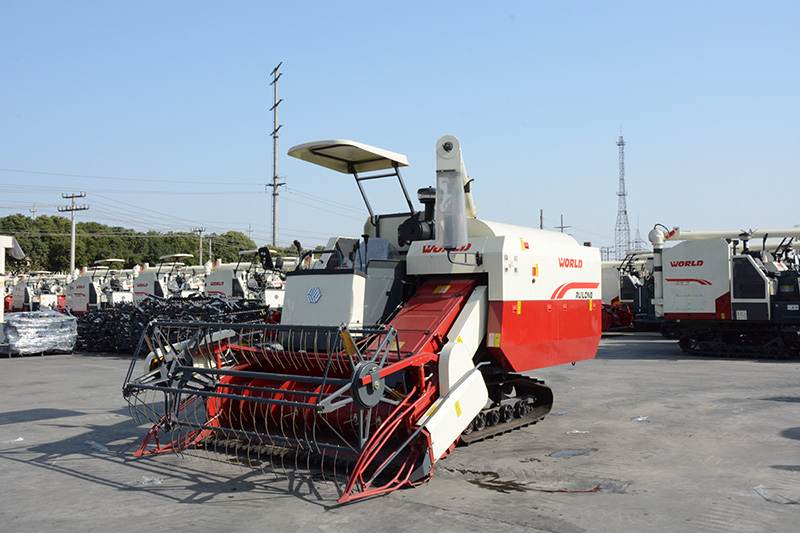

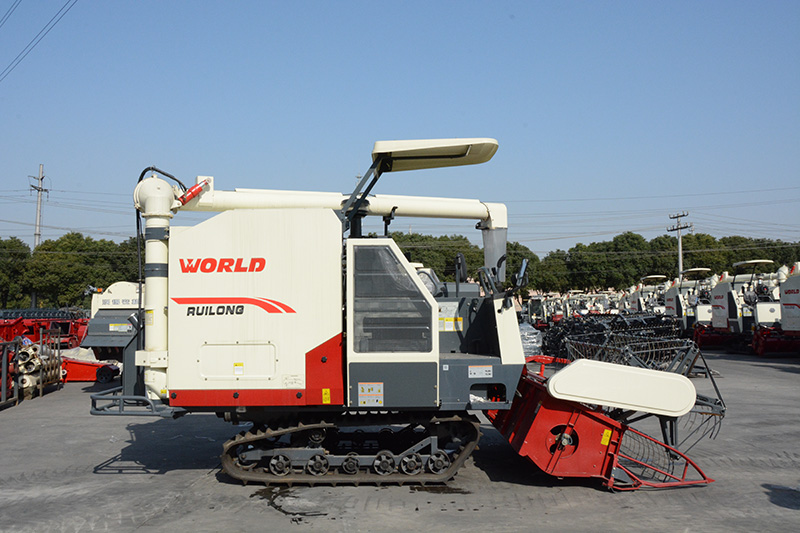

| Model | RUILONG 4LZ-6.0P with Canopy | |||
| Type | Self-propelled Whole-feeding | |||
| Dimension (Operation) | Length（mm） | 5150 | ||
| Width（mm） | 2620 | |||
| Height（mm） | 3030 | |||
| Weight（kg） | 3400 | |||
| Engine | Power（HP） | 102 | ||
| RPM（r/min） | 2600 | |||
| Fuel Capacity（L） | 130 | |||
| Gearbox | Hydraulic Gearbox Box ZKB85 | |||
| HST | 45cc | |||
| Chassis | Track(mm) | 550*90*56 | ||
| Track Center(mm) | 1350 | |||
| Ground Clearance(mm) | 360 | |||
| Harvesting | Cutting Width(mm) | 2200 | ||
| Feeding Capacity (kg/s) | 6.0 | |||
| Cutting Bar Lift | Hydraulic Control | |||
| Threshing | Type | Axial Flow Type with Beat Bars | ||
| Threshing Cylinder (mm) | 620*2010 | |||
| Filtrate Type | Vibrating Sieves+ Centrifugal Fan | |||
| Discharging | Grain Tank Capacity(M3) | 1.6 | ||
| Grain Discharge Type | All Direction Discharging Pipe | |||
| Work efficiency(ha./h) | 1.2-1.8 | |||
| Crops | Rice, Wheat, Rape,Soybean,Corn | |||
1. Adopts 102HP engine with high power and low fuel consumption.
2.Cutting Width 2.2m for different areas of fields.
3. WORLD special hydraulic gearbox 85 with best quality.
4.Use 45cc HST for working more smoothly.
5.Bigger threshing cylinder ensures grain lose less and much cleaner.
6.Stronger rubber track 550*90*56 with high teeth for working more efficient in deep mud field.
7. Sunshade
