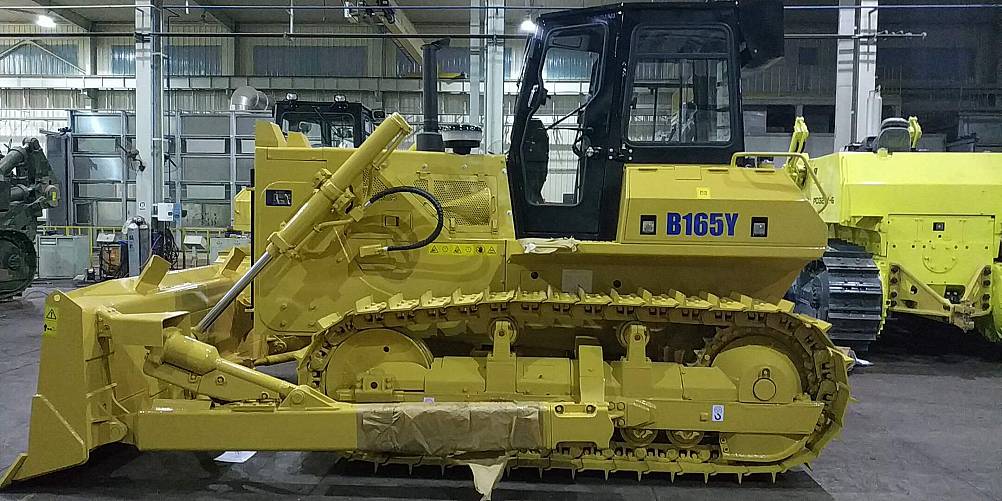

| 产å“åž‹å·Product Model | B165/B165YS | ||||
| å‘动机ENGINE | |||||
| åž‹å·Model | 上柴SC11CB184G2B1 | 康明斯 NT855-280S10 Cummins NT855-280S10 | |||
| åž‹å¼Type | 四冲程ã€æ°´å†·ã€ç›´åˆ—ã€ç›´å–·å¼ Four-stroke, water cooling, straight vertical, direct injection type | 直列ã€å››å†²ç¨‹ã€PT泵喷射ã€æ¶¡è½®å¢žåŽ‹ Straight vertical, four-stroke, PT pump injection, turbocharged | |||
| 飞轮功率(kW) Flywheel power (kW) | 122 | 122 | |||
| é¢å®šè½¬é€Ÿ(r/min) Rated speed (r/min) | 1850 | 1850 | |||
| 缸数ï¼ç¼¸å¾„×行程(mm) Number of cylinders-bore×stroke (mm) | 6-121×152 | 6-140×152 | |||
| å¯åŠ¨æ–¹å¼ Starting method | 24V,7.5 k电动机å¯åŠ¨Electric starting motor24V7.5kw 77.5rrrrr7.5kW | 24V,7.5 k电动机å¯åŠ¨Electric starting motor24V7.5kw 77.5rrrrr7.5kW | |||
| è“„ç”µæ± Battery | 24V (12V×2)-195AH | 24V (12V×2)-195AH | |||
| 空气滤清器Air cleaner | å¹²å¼ã€é¢„滤旋æµæ»¤æ¸…器 Dry type, precleaned cyclone air cleaner | å¹²å¼ã€çº¸è´¨ç©ºæ°”滤清器 Dry type, precleaned paper element air cleaner | |||
| ä¼ åŠ¨è£…ç½® TRANSMISSION SYSTEM | |||||
| 液力å˜çŸ©å™¨ Torque converter | 3元件ã€å•çº§ã€å•ç›¸ 3-element, single-stage, single phase | ||||
| å˜é€Ÿç®± Transmission | 手æ“纵ã€æ¶²åŽ‹æ¢æ¡£ã€è¡Œæ˜Ÿé½¿è½®ã€å¤šç‰‡ç¦»åˆå™¨å¼ã€æ³µåŽ‹é€å¼ºåˆ¶æ¶¦æ»‘ Hand-operated, Hydraulic shift, Planetary gear, multiple disc clutch, forced lubrication by gear pump, | ||||
| ä¸å¤®ä¼ 动 Bevel gear | 螺旋伞齿轮，飞溅润滑 helical bevel gear, Splash lubricated | ||||
| 转å‘离åˆå™¨ Steering clutch | 湿å¼å¤šç‰‡ï¼Œå¼¹ç°§åŽ‹ç´§ï¼Œæ‰‹åŠ¨æ¶²åŽ‹æ“纵，液压分离 Wet, Multiple disc, Spring loaded, Hand-operated with booster and hydraulic-released | ||||
| 转å‘制动器 Steering brake | 湿å¼ï¼Œå¸¦å¼ï¼Œæ¶²åŽ‹åŠ©åŠ›è”动æ“纵 Wet, band brake, operated with hydraulic booster | ||||
| æœ€ç»ˆä¼ åŠ¨ Final drive | æ£é½¿è½®ï¼ŒäºŒçº§å‡é€Ÿï¼Œé£žæº…润滑 Spur gear, double reduction, splash lubrication | ||||
| 行走装置 UNDER CARRIAGE | |||||
| 驱动轮 Sprocket | 镶å—å¼å¤§é“¾è½® Segmented | ||||
| 支é‡è½®æ•°(æ¯ä¾§) Number of track shoes (each side) | 7 (4å•ï¼Œ3åŒ) 7 (4 single, 3 double) | ||||
| å¼ åŠ›æœºæž„ Track tension | 黄油涨紧 Hydraulic adjusted | ||||
| *驱动轮，支é‡è½®ï¼Œæ‰˜è½®å’Œå¼•å¯¼è½®å‡é‡‡ç”¨æµ®åŠ¨æ²¹å°Floating seals are used in all track rollers,carrier rollers,sprocket and front idlers | |||||
| 行驶速度 TRAVEL SPEED (km/h) | |||||
| 1速 1st | 2速 2nd | 3速 3rd | |||
| å‰è¿› Forward | 3.8 | 6.6 | 10.6 | ||
| åŽé€€ Reverse | 4.9 | 8.5 | 13.6 | ||
| 履带 TRACK | |||||
| åž‹å¼ Type | 密å°æ¶¦æ»‘å¼ã€‚å•å±¥é½¿æˆ–密å°å¼å•å±¥é½¿ Sealed and lubricated single grouser or sealed single grouser | ||||
| èŠ‚è· (mm) Track pitch (mm) | 203 | ||||
| 宽度 (mm) Track width (mm) | 1000 | ||||
| 履带æ¿æ•° (æ¯ä¾§) Number of track shoes (each side) | 44 | ||||
| 履带接地长度 Length of track on ground (mm) | 3140 | ||||
| 离地间隙 (mm) Ground clearance (mm) | 500 | ||||
| 接地压力 (MPa) Ground pressure (Mpa) | ≤0.029 | ||||
| 履带ä¸å¿ƒè· (mm) Track gauge (mm) | 2150 | ||||
| 工作装置液压系统 HYDRAULIC SYSTEM OF WORK EQUIPMENT | |||||
| 工作压力 (MPa) Working pressure (Mpa) | 14 | ||||
| é¢å®šæµé‡ (L/min) (2000r/min) Rated delivery (L/min) (2000r/min) | 243 | ||||
| 油泵 Pump | 齿轮泵 Gear pump | ||||
| æ“作阀 Control valve | æ‰‹åŠ¨æ»‘é˜€å¼ Hand-operated, sliding type | ||||
| é˜€ä½ Valve position | 上å‡ã€ä¿æŒã€ä¸‹é™ã€æµ®åŠ¨Raise, Hold, Lower, Float | ||||
| 油缸：缸径×æ†å¾„×行程 (mm) Cylinder,Boro×Rod×Stroke (mm) | Φ110×Φ65×1026 | ||||
| 工作装置 WORK EQUIPMENT | |||||
| 推土æ¿å½¢å¼ Blade type | 直倾铲 Straight tilt blade | 环å«é“² Dozer for garbage | |||
| 宽×高 (mm)Width×Height (mm) | 3970×1050 | 3970×1450 | |||
| 最大æå‡é«˜åº¦ (mm) Max.lift above ground (mm) | 1180 | 1180 | |||
| 最大切土深度 (mm) Max.drop below ground (mm) | 440 | 440 | |||
| 刀刃切削角(°) Pitch adjustment (°) | 55° | 55° | |||
| 最大侧倾é‡(mm) Max.tilt (mm) | 860 | 860 | |||
| å®¹é‡ Blade capacity(m³) | 4.4 | 6.17 | |||
Main Features
1. 165 hp Bulldozer (165 hp dozer) has attractive appearance and a strong sense of the times.
2. High engine power, large output torque, low oil-consumption, reliable.
3. Hydraulic transmission, automatic speed regulation, gear shifting without stopping the machine.
4. Three components on single element single stage torque converter, high efficiency, large capacity.
5. The new-style ROPS-FOPS, practical, beautiful.
6. The novel hexagon cabin, a broader vision, better ventilation, better seal effect.
7. 165 hp Bulldozer the new-style bulldozing working equipment is durable and its bucket capacity is much larger.
8. The new-style three-stage alarm device is mechanically integrated, electronic monitoring instrument shows three-stage alarm.
9. Manipulation design is people-oriented. Handle distributes both sides, which makes it more convenient to operate.
10. Working equipment adopts servo controlling, less strength to operate.
11. Working equipment adopts electronic lock, more convenient, more reliable.
12. Diverse optional devices: ROPS-FOPS cabin, ordinary cabin, cabin with air conditioner, heater, the anther starting aid, angle and straight blade push broach, U-blade spade, environmental sanitation spade etc.
13. Similar to D6 Bulldozer of CAT.
